Shuttle Racking

High-density pallet storage automation.

Overview

In an ideal environment, Dynamic Shuttle systems can double your company’s throughput while halving the number of forklifts required.

Forklifts can be freed up for other tasks or simply not purchased. Retrieving items down a long drive in the racking system on a forklift does take time, is hard to see, can be hard on tyres if your fork truck isn’t on a wire-guided system. High-density Pallet storage allows companies to Maximize their warehouse area by utilising every square meter, fitting in more pallets you’re your building let Shelving Shop Group make your warehouse be more efficiently by conquering your space through innovation.

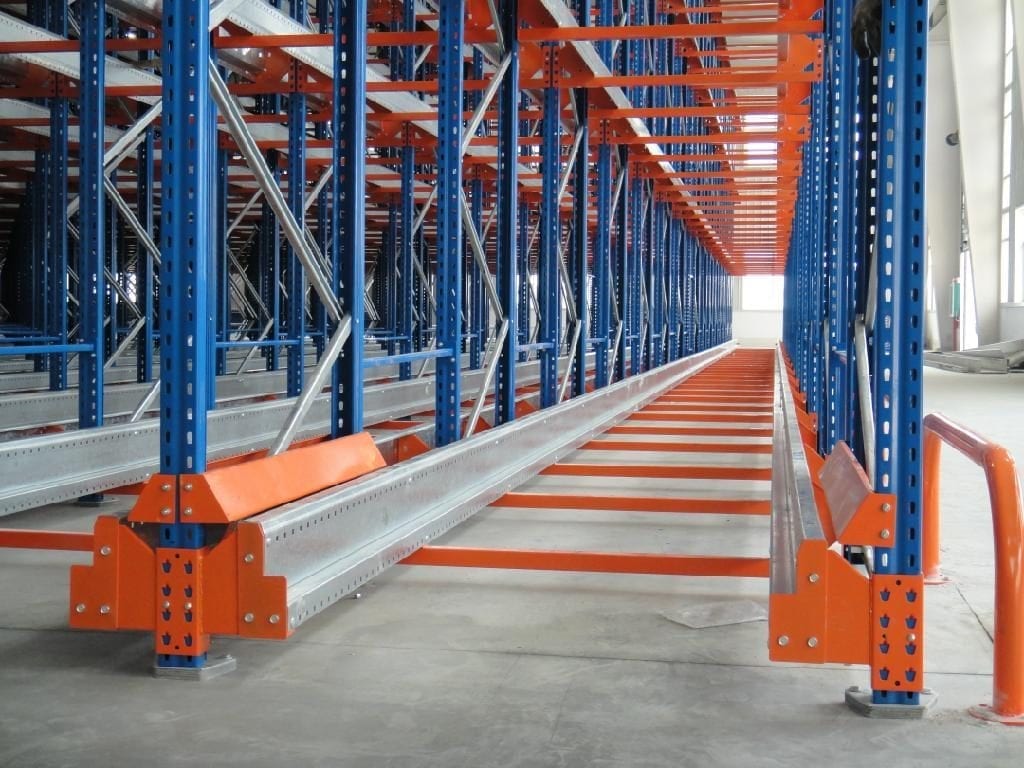

Radio shuttle is a semi-automated high-density storage system. The shuttle carts a pallet moving within the channel back and forth for transportation, then the forklift picks up the pallet at the end. It’s a perfect option for a drive-in racking system used in cold storage, the food and beverage industry and other businesses with low levels of SKU storage.

This system allows each load to be transported via pallet shuttle, down the channel to be stored. A process carried out semi-automatically allowing for multiple channels to be loaded separately. We understand that time and space are your most valuable asset and optimising the way you store your range of inventory is key.

Shuttle Performance

  • Travelling speed – unloaded 1.2m/s, loaded 0.8m/s
  • Working range time – 8-10h
  • Weight – 250kg
  • Remote distance 500m
  • Carrying load – 1500kg
  • Pallet size – 1m – 1.2m
  • Pallet lift height – 45mm
  • Lifting and downtime – 1.5s

Radio shuttle is a semi-automated high-density storage system. The shuttle carts a pallet moving within the channel back and forth for transportation, then the forklift picks up the pallet at the end. It’s a perfect option for a drive-in racking system used in cold storage, the food and beverage industry and other businesses with low levels of SKU storage.

This system allows each load to be transported via pallet shuttle, down the channel to be stored. A process carried out semi-automatically allowing for multiple channels to be loaded separately. We understand that time and space are your most valuable asset and optimising the way you store your range of inventory is key.

Key Features

Low temperature storage

Ideal for storage at low temperature (-25°C).

Same SKU storage

Ideal for high volume products of the same SKUs.

Standard forklifts used

Specialized forklift equipment is not normally required.

Deep rack storage

Supports deep rack storage, and developed using our premium Dura Pallet Racking system.

Shuttle Battery

  • Voltage – 24v
  • Capacity lithium battery – 60Ah
  • Battery life – More than 2000 times
  • Charging period – 3 hours at room temperature (0°C-45°C), 6 hours at low temperature (-25°C -0°C)

Remote Control

  • Frequency – 433.05MHz – 434.6MHz
  • Battery – Rechargeable
  • Protection degree – IP 65
  • Screen – LED
  • Control mode – Manual and automatic
  • Communication capacity – 8 Shuttle carts

Advantages

Dynamic Shuttle system offers several business advantages by increasing with efficiency then of course results in reducing operating costs, fork trucks, and servicing, staff labour and of course, all this saves you time and money. This is the best utilisation of space up to 90%. The main self-powered carrier is movable from level to level, lane to lane, and even unit to unit. You can have as many shuttle units as you require. Each time the shuttle brings the pallet to the correct position at the front of the racking to make it ready for collection, stopping at the exact position.

  • Efficient load and unload system, which ensures high accuracy.
  • Less damage to the racking units as the forklift does not enter the racking unit.
  • Greatly reduced labour cost.
  • Compatible with different pallet sizes.
  • Supports deep rack storage.
  • Automated units reduce pallet handling.
  • Auto units also maximize efficiency.

Cost & Space Saving

Shuttle racking solution that adapts to any warehouse — no matter the size of existing space, allowing maximum optimization of the storage volume and reducing the working times. The space utilization of the warehouse increases from 40% up to 80% and automatic order picking efficiency is doubled or tripled compared to a drive-in system.

It has supported WCS, WMS software and fulfilled in line with the new generation of Internet of things (IoT) plus era and realized the long-distance monitor and control (no limit of flow). By using the network solve your problem more efficiently and greatly reduce the labour cost.
